Shore-Flex™ 400 Series
Our Product

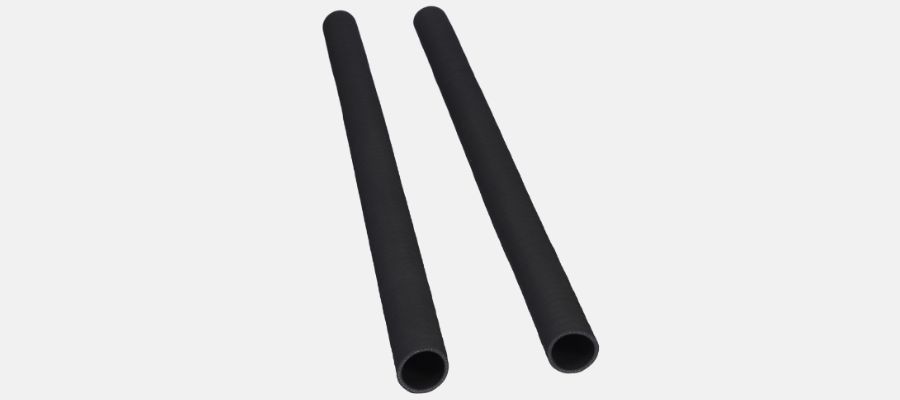

Shore-Flex™ 400 Series Straight Coolant Hose (EPDM – Textured)
➜ Working pressure is approximately 1/3rd of burst pressure
➜ Good ozone and weather resistance
➜ “Heavy wall” option for higher-pressure resistance, available on request
➜ Wall thickness: see table
➜ Temperature resistance: -40 to +130 deg C (-40 to + 266 deg F)
➜ Electro-chemical resistant
➜ Use in a variety of sectors including heavy-duty automotive, industrial, farming, mining & construction, amongst others
Coolant Hose with Multiple Layers of Polyester
Heavy-duty standard wall
|
Sr. no. |
Part No. |
Inner Diameter |
Wall Thickness |
Outer Diameter |
Burst Pressure (MPA) |
Actual Burst Pressure |
|||||
|
mm |
in |
mm |
in |
mm |
in |
Speciffication |
Actual |
Speciffication |
Actual |
||
|
1 |
400-039 |
10.0 |
0.39 |
4.95 |
0.19 |
19.9 |
0.75 |
3.29 |
3.50 |
477 |
508 |
|
2 |
400-050 |
12.7 |
0.50 |
4.95 |
0.19 |
22.6 |
0.85 |
2.93 |
3.30 |
425 |
479 |
|
3 |
400-063 |
16.0 |
0.63 |
4.95 |
0.19 |
25.9 |
0.98 |
2.59 |
2.90 |
376 |
421 |
|
4 |
400-075 |
19.0 |
0.75 |
4.95 |
0.19 |
28.9 |
1.10 |
2.24 |
2.40 |
325 |
348 |
|
5 |
400-087 |
22.0 |
0.87 |
4.95 |
0.19 |
31.9 |
1.18 |
2.24 |
2.40 |
325 |
348 |
|
6 |
400-100 |
25.0 |
1.00 |
4.95 |
0.19 |
34.9 |
1.34 |
2.06 |
2.20 |
299 |
319 |
|
7 |
400-110 |
28.0 |
1.10 |
4.95 |
0.19 |
37.9 |
1.46 |
2.06 |
2.20 |
299 |
319 |
|
8 |
400-118 |
30.0 |
1.18 |
4.95 |
0.19 |
39.9 |
1.54 |
1.90 |
2.00 |
276 |
290 |
|
9 |
400-125 |
32.0 |
1.25 |
4.95 |
0.19 |
41.9 |
1.61 |
1.90 |
2.00 |
276 |
290 |
|
10 |
400-138 |
35.0 |
1.38 |
4.95 |
0.19 |
44.9 |
1.73 |
1.90 |
2.00 |
276 |
290 |
|
11 |
400-150 |
38.0 |
1.50 |
4.95 |
0.19 |
47.9 |
1.85 |
1.72 |
1.90 |
249 |
276 |
|
12 |
400-165 |
42.0 |
1.65 |
4.95 |
0.19 |
51.9 |
2.01 |
1.72 |
1.80 |
249 |
261 |
|
13 |
400-175 |
45.0 |
1.75 |
4.95 |
0.19 |
54.9 |
2.13 |
1.55 |
1.65 |
225 |
239 |
|
14 |
400-200 |
51.0 |
2.00 |
4.95 |
0.19 |
60.9 |
2.36 |
1.38 |
1.45 |
200 |
210 |
|
15 |
400-216 |
55.0 |
2.16 |
4.95 |
0.19 |
64.9 |
2.52 |
1.21 |
1.32 |
175 |
191 |
|
16 |
400-225 |
57.0 |
2.25 |
4.95 |
0.19 |
66.9 |
2.6 |
1.21 |
1.28 |
175 |
186 |
|
17 |
400-236 |
60.0 |
2.36 |
4.95 |
0.19 |
69.9 |
2.72 |
1.21 |
1.25 |
175 |
181 |
|
18 |
400-250 |
63.0 |
2.50 |
4.95 |
0.19 |
72.9 |
2.83 |
1.03 |
1.15 |
149 |
167 |
|
19 |
400-263 |
66.7 |
2.63 |
4.95 |
0.19 |
76.6 |
2.98 |
1.03 |
1.10 |
149 |
160 |
|
20 |
400-275 |
70.0 |
2.75 |
4.95 |
0.19 |
79.9 |
3.11 |
0.86 |
0.95 |
125 |
138 |
|
21 |
400-287 |
73.0 |
2.87 |
4.95 |
0.19 |
82.9 |
3.23 |
0.86 |
0.90 |
125 |
131 |
|
22 |
400-300 |
76.0 |
3.00 |
4.95 |
0.19 |
85.9 |
3.35 |
0.60 |
0.85 |
87 |
123 |
|
23 |
400-325 |
83.0 |
3.25 |
4.95 |
0.19 |
92.9 |
3.62 |
0.60 |
0.72 |
87 |
104 |
|
24 |
400-350 |
89.0 |
3.50 |
4.95 |
0.19 |
98.9 |
3.86 |
0.52 |
0.65 |
75 |
94 |
|
25 |
400-375 |
95.0 |
3.75 |
4.95 |
0.19 |
104.9 |
4.09 |
0.52 |
0.60 |
75 |
87 |
|
26 |
400-400 |
102.0 |
4.00 |
4.95 |
0.19 |
111.9 |
4.37 |
0.34 |
0.55 |
49 |
80 |
|
27 |
400-450 |
114.0 |
4.50 |
4.95 |
0.19 |
123.9 |
4.84 |
0.34 |
0.45 |
49 |
65 |
|
28 |
400-500 |
127.0 |
5.00 |
4.95 |
0.19 |
136.9 |
5.35 |
0.34 |
0.40 |
49 |
58 |
|
29 |
400-600 |
152.0 |
6.00 |
4.95 |
0.19 |
161.9 |
6.34 |
0.34 |
0.38 |
49 |
55 |
Note: Not suitable for OAT coolants that have very high pH levels or Coolants that contain ethyl-hexanoic acids.
