Shore-Flex™ 800 Series(cold side)

shore-flex-800

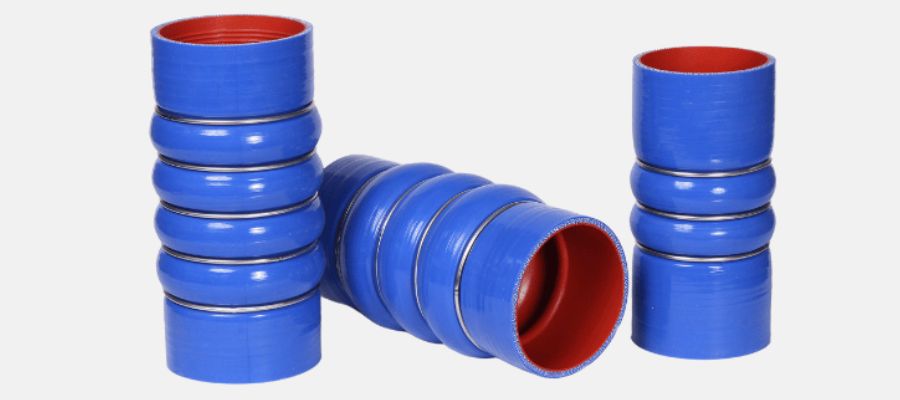

Shore-Flex™ 800 Series Charge-Air-Cooler Hoses (Cold Side)

  • Silicone with multiple layers of polyester reinforcement
  • Working pressure is approximately 1/3rd of the burst pressure
  • Thickness: 3 +/- 0.5mm (excluding overlap)
  • Suitable for extremely harsh temperatures: -56 to +180 °C (-68.8 to +356°F)
  • Silicone Hoses COMPLIES with fire specification UL94HB

Also available in Hump-Reducer Design
Cold side (800C)

Would you like to start a project with us?

Contact Us
Sr. no. Part No. Inner Diameter Outer Diameter Length # of Convolutes
(Humps)		 # of SS Rings Max Working
Pressure (PSI)		 Max Working
Pressure (MPA)
mm in mm in mm in
1 800C250-060 63.5 2.50 70 2.74 152.4 6.00 2 3 60 0.41
2 800C300-060 76.2 3.00 82 3.24 152.4 6.00 2 3 60 0.41
3 800C350-060 88.9 3.50 95 3.74 152.4 6.00 2 3 55 0.38
4 800C350-075 88.9 3.50 95 3.74 190.5 7.50 2 3 55 0.38
5 800C400-060 101.6 4.00 108 4.24 152.4 6.00 2 3 50 0.34
6 800C400-065 101.6 4.00 108 4.24 165.1 6.50 2 3 50 0.34
7 800C400-070 101.6 4.00 108 4.24 177.8 7.00 2 3 50 0.34
8 800C400-075 101.6 4.00 108 4.24 190.5 7.50 2 3 50 0.34
9 800C400-080 101.6 4.00 108 4.24 203.2 8.00 2 3 50 0.34
10 800C450-060 114.3 4.50 120 4.74 152.4 6.00 2 3 45 0.31
11 800C500-060 127.0 5.00 133 5.24 152.4 6.00 2 3 35 0.24
Sr.
no.		 Part No. Inner Diameter Outer Diameter Length # of Convolutes
(Humps)		 # of SS
Rings		 Max Working
Pressure (PSI)		 Max Working
Pressure (MPA)
mm in mm in mm in
1 800C250-300 63.5 2.50 76.2 3.00 101.6 4.00 1 2 40 0.28
2 800C300-350 76.2 3.00 88.9 3.50 127 5.00 1 2 55 0.38
3 800C300-400 76.2 3.00 101.6 4.00 152.4 6.00 1 2 50 0.34
4 800C350-400 88.9 3.50 101.6 4.00 152.4 6.00 1 2 50 0.34
5 800C400-450 101.6 4.00 114.3 4.50 152.4 6.00 1 2 30 0.21
