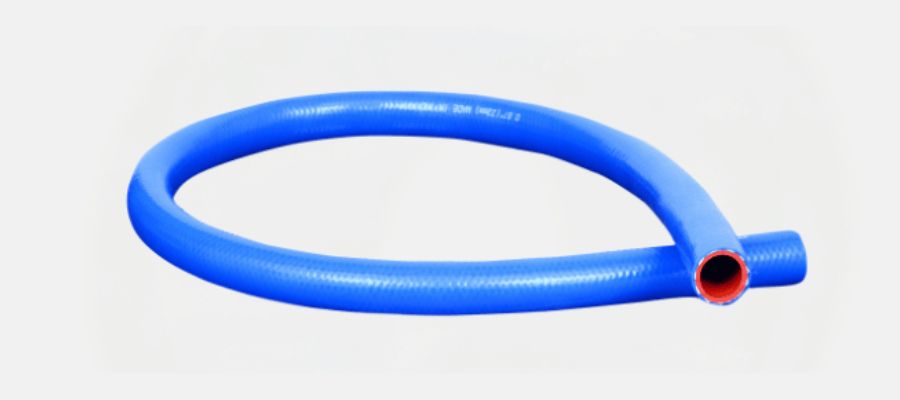

Shore-Flex™ 600 Series Straight Heater Hose (Silicone – Glossy)
- Working pressure is approximately 1/3rd of the burst pressure
- Improved flexibility
- Suitable for extremely harsh temperatures: -56 to +180 °C (-68.8 to +356°F)
- Wall Thickness: 3.5 to 4.95mm, depending on diameter
- Electro-chemical resistant
- Silicone Hoses COMPLIES with fire specification UL94HB
- Excellent ozone and weather resistance
- Use in a variety of sectors including heavy-duty automotive, industrial, farming, mining & construction, amongst others
Silicone Heater Hose with 1 layer of Polyester Longer size spools are available on request
Available in 25 feet (boxes)
Would you like to start a project with us?
Contact Us| Sr. no. |
Part No. | Hose ID | Wall Thickness | Outer Diameter | Burst Pressure (In MPA) | Burst Pressure (In PSI) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | Specification | Actual | Specification | Actual | ||
| 1 | 600-025 | 6 | 0.25 | 4.2 | 0.17 | 14.4 | 0.57 | 1.72 | 2.20 | 249 | 319 |
| 2 | 600-031 | 8 | 0.31 | 4.2 | 0.17 | 16.4 | 0.65 | 1.72 | 2.10 | 249 | 305 |
| 3 | 600-039 | 10 | 0.39 | 4.2 | 0.17 | 18.4 | 0.72 | 1.72 | 2.10 | 249 | 305 |
| 4 | 600-050 | 13 | 0.50 | 4.2 | 0.17 | 21.4 | 0.84 | 1.72 | 2.10 | 249 | 305 |
| 5 | 600-063 | 16 | 0.63 | 4.2 | 0.17 | 24.4 | 0.96 | 1.72 | 2.00 | 249 | 290 |
| 6 | 600-075 | 19 | 0.75 | 4.2 | 0.17 | 27.4 | 1.08 | 1.38 | 2.00 | 200 | 290 |
| 7 | 600-087 | 22 | 0.87 | 4.2 | 0.17 | 30.4 | 1.20 | 1.21 | 1.70 | 175 | 247 |
| 8 | 600-100 | 25 | 1.00 | 4.2 | 0.17 | 33.4 | 1.31 | 1.21 | 1.70 | 175 | 247 |
| 9 | 600-125 | 32 | 1.25 | 4.2 | 0.17 | 40.4 | 1.59 | 1.21 | 1.40 | 175 | 203 |
Note: Not suitable for OAT coolants that have very high pH levels or Coolants that contain ethyl-hexanoic acids.
