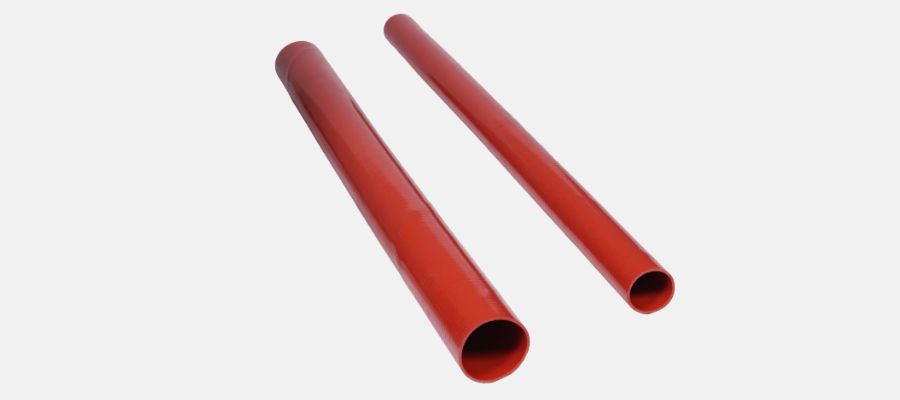

Shore-Flex™ 900 Series Straight Turbocharger Hoses
- For connecting the Turbocharger with the engine
- SSuitable for extremely harsh temperatures: -56 to +221 °C C (-68.8 to +430 deg F)
- Use in a variety of sectors including heavy-duty automotive, industrial, farming, mining and construction, amongst others
- Wall Thickness: 3 +/- 0.5 mm (excluding overlap)
- Excellent ozone and weather resistance
- Silicone Hoses COMPLIES with fire specification UL94HB
Red Silicone Hoses with multiple layers of meta-aramid fabric (that can be cut to length at your end)
All sizes available in 3 feet length
Would you like to start a project with us?
Contact Us| Sr. no. |
Part No. | Hose ID | Outer Diameter | Max Working Pressure | |||
|---|---|---|---|---|---|---|---|
| mm | in | mm | in | MPA | PSI | ||
| 1 | 900-010 | 25.4 | 1.0 | 31.4 | 1.24 | 0.31 | 45 |
| 2 | 900-015 | 38.1 | 1.5 | 44.1 | 1.74 | 0.28 | 40 |
| 3 | 900-020 | 50.8 | 2.0 | 56.8 | 2.24 | 0.24 | 35 |
| 4 | 900-025 | 63.5 | 2.5 | 69.5 | 2.74 | 0.21 | 30 |
| 5 | 900-030 | 76.2 | 3.0 | 82.2 | 3.24 | 0.17 | 25 |
| 6 | 900-035 | 88.9 | 3.5 | 94.9 | 3.74 | 0.14 | 20 |
| 7 | 900-040 | 101.6 | 4.0 | 107.6 | 4.24 | 0.10 | 15 |
| 8 | 900-045 | 114.3 | 4.5 | 120.3 | 4.74 | 0.07 | 10 |
| 9 | 900-050 | 127 | 5.0 | 133 | 5.24 | 0.07 | 10 |
| 10 | 900-060 | 152.4 | 6.0 | 158.4 | 6.24 | 0.07 | 10 |
