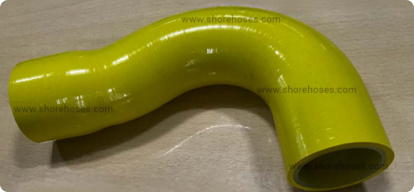

Silicone Hoses For Fuel- Cells
Media – Hydrogen:
For Hydrogen filling, we have a special Silicone Hose with a Black impermeable Liner
OPTIONS:
- SS wire reinforcing ply for heavy “positive” or “negative” pressure

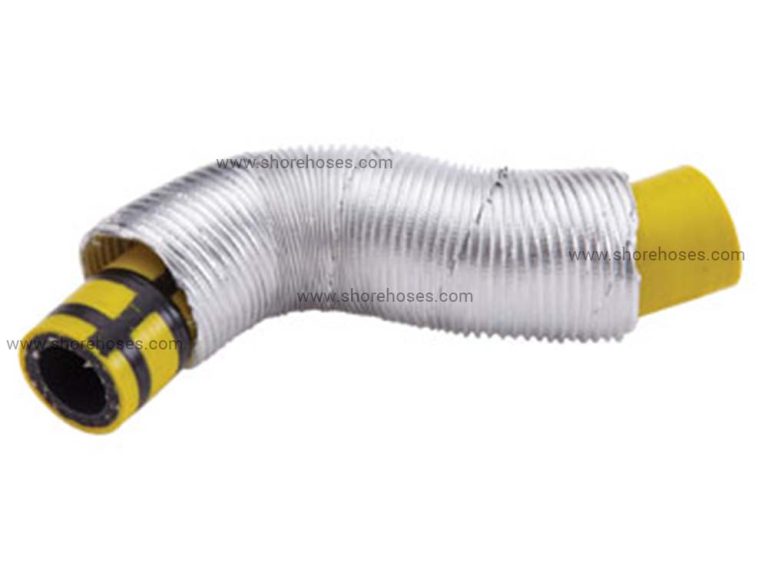

- Anti-abrasion external sleeve: for protection if the hose outer surface is in contact with adjoining parts

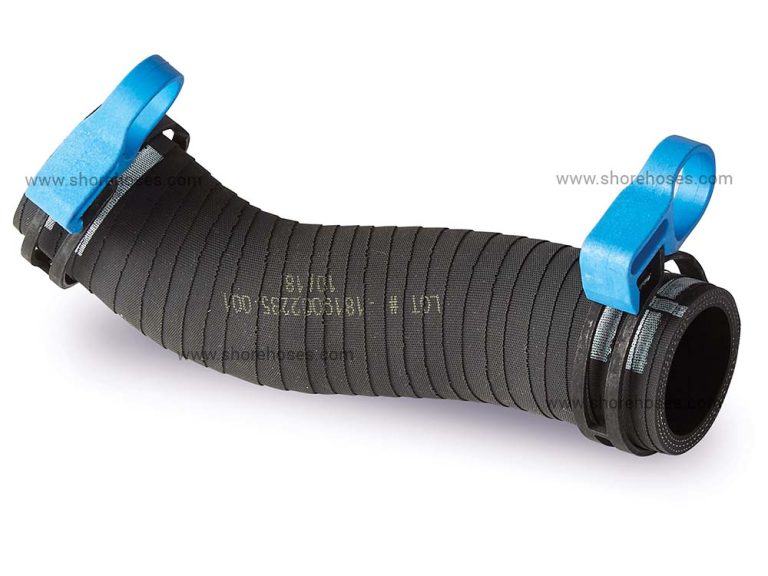

- Location and Clamp marking: For guiding the mating parts or clamp
At Shore Auto Rubber Exports Pvt. Ltd., We also supply High Quality Silicone Hoses with Fluorosilicone lining as well. Fluorosilicone (FVMQ) scores over FKM/Viton® when it comes to cold-temperature resistance, going down all the way to -55 deg C comfortable. You can count on us!
Media – Oxygen and Water:

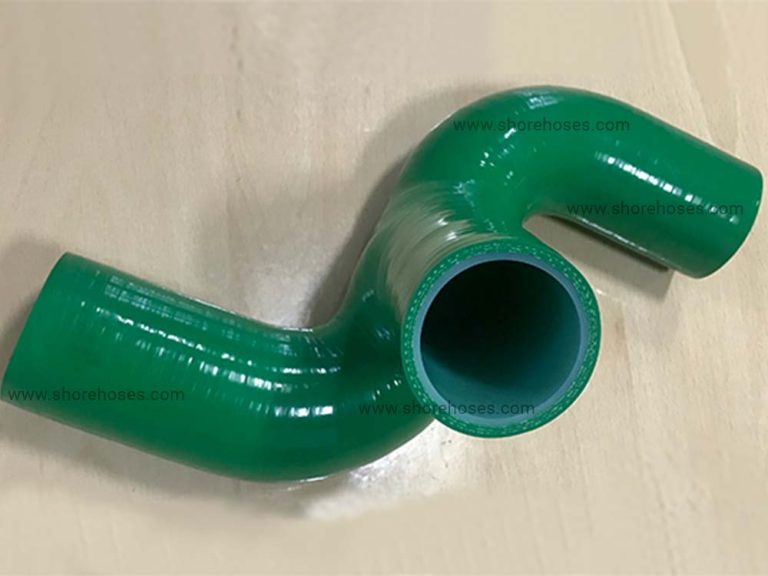

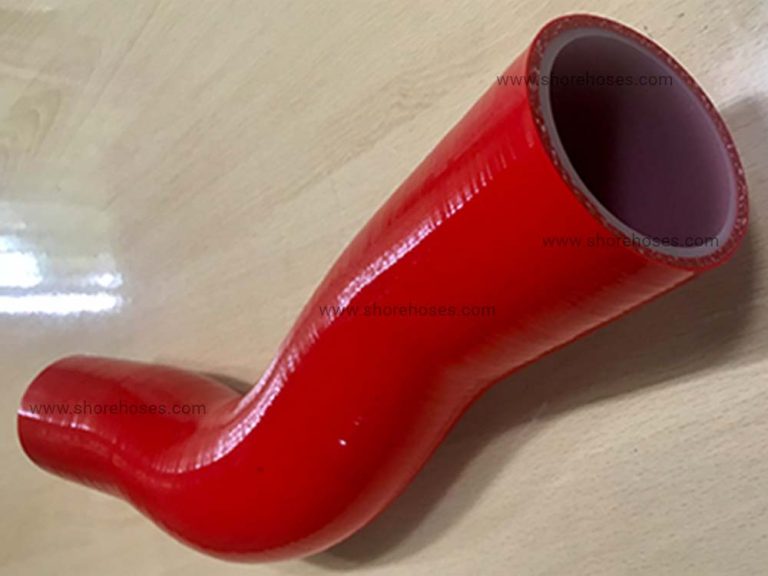

This hose has been specially introduced to eliminate the issue of contamination of the fluid or air carried by the hose, from trace level extractable materials found in the conventional silicones; e.g. Siloxanes. The Shore-FC range finds usage in various sectors, including Motor-sport, Marine, Truck/Bus, Rail, and Industrial sectors, wherever the risk of contamination needs to be reduced drastically.
Hence, the clear liner ensures that the purity of the air/fluid being transferred doesn’t get compromised.
Unless otherwise stated, our standard Reinforced Silicone Rubber Hoses have 3 plies of Polyester reinforcement – this applies to all hoses up to an Internal Diameter of 50mm. For larger diameter hoses we use 4 plies of the same reinforcement to provide better pressure resistance.
Our reinforced silicone hoses undergo extensive physical, chemical, and dynamic testing to perfectly match industry needs.
For OAT and hybrid OAT coolants, please inform us in advance, so that we can quote accordingly.
Temperature range: -56°C to +180°C
Meets or Exceeds requirements SAEJ20 R4 Class A
US FDA 21/177-2600 compliant
Flame-resistant UL 94-HB compliant
REACH and ROHS compliant
OPTIONS:
- SS wire reinforcing ply for heavy “positive” or “negative” pressure
- Nylon wire (non-conductive) for heavy “positive” or “negative” pressure
- Anti-abrasion external sleeve: for protection if the hose outer surface is in contact with adjoining parts
- Location and Clamp marking: For guiding the mating parts or clamp
Burst Pressures of typical Silicone/Polyester Hoses:
| ID (mm) | Burst Pressure (Bar) | ID (mm) | Burst Pressure (Bar) |
|---|---|---|---|
| 6.00 | 41.2 | 38.00 | 13.9 |
| 8.00 | 38.6 | 45.00 | 11.2 |
| 12.00 | 28.5 | 50.80 | 10.2 |
| 15.00 | 22.3 | 55.00 | 9.5 |
| 18.00 | 21.1 | 63.00 | 7.9 |
| 22.00 | 17.8 | 70.00 | 6.8 |
| 25.00 | 16.7 | 75.00 | 6.1 |
| 28.00 | 16.1 | 89.00 | 5.5 |
| 32.00 | 14.7 | 102.00 | 5.0 |
*Vacuum Pressures also available on demand
Other Physical Properties:
| Shore Hardness (Shore A) | 70 +/- 5 |
| Tensile Strength (MPa) | 7.08 |
| Elongation at Break (%) | 258 |
| Compression Set (%) | 21.3 |
| 70 hours at 125°C |
Change in Properties following Heat-Ageing at 175 C for 70 hours.
| Change in Hardness (Shore A) | +3 |
| % Change in Tensile Strength | -11.68 |
| % Change in Elongation at Break | -22.76 |
Results can be supplied (for example for higher temperature resistance) on customers’ specific demands.
